OrigaStat e 100

    Potentiostat - Galvanostat - Impedancemeter

                                      download the PDF brochure

OrigaStat is a potentiostat/galvanostat, an impedancemeter, a speed control unit for the rotating electrode, stirrer and measurement stand. Fitted with a temperature sensor and electromer inputs, the OrigaStat offers the measurements of pH, ions and also titration. Finally, the logical inputs/outputs enable the system to control many peripherals such as furnaces, pumps, balances, reagent addition burettes, sample changers and thermostated baths.

With its USB interface, the              OrigaMaster 5 PC software          benefits from improved data-computing, and it is compatible with Windows XP, Vista and 7. In addition to the usual methods it also features graphic programming of the sequences, the possibility of running conditional loops, cycles tests and insertion of a mathematical equation, of starting a peripheral, and receiving start/stop commands from external units.

OrigaStat with its logical inputs combined with OrigaMaster 5 and its start/stop instructions, provides a complete automation for            electrochemical applications.

Applications

The OrigaStat & OrigaMaster system is ideal for application for surface treatment, studying corrosion, testing batteries and fuel cells and developing new materials.

Its low current range of  1 nA (30 fA resolution) is well suited for investigation of materials such as insulators, dielectrics, ceramics, nano materials (nanotubes from carbon) and semiconductors.

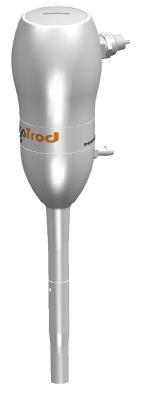

The OrigaTrod rotating electrode is connected directly to the OrigaStat instrument (mini DIN 6 "Power" socket) and does not require the use of an external speed control unit.

It adapts to a great majority of measurement cells fitted with NS14/23 ground joints.

Able to function from 0 to 10000 RPM, the OrigaTrod is driven by a motor fited with ball bearings of a "swiss made ®" reference top quality.

The electrical signal is ensured thanks to graphite contact doped with silver.

 It is available with a wide range of OrigaLys active tips in various materials and diameters (platinum, gold, glassy carbon etc)

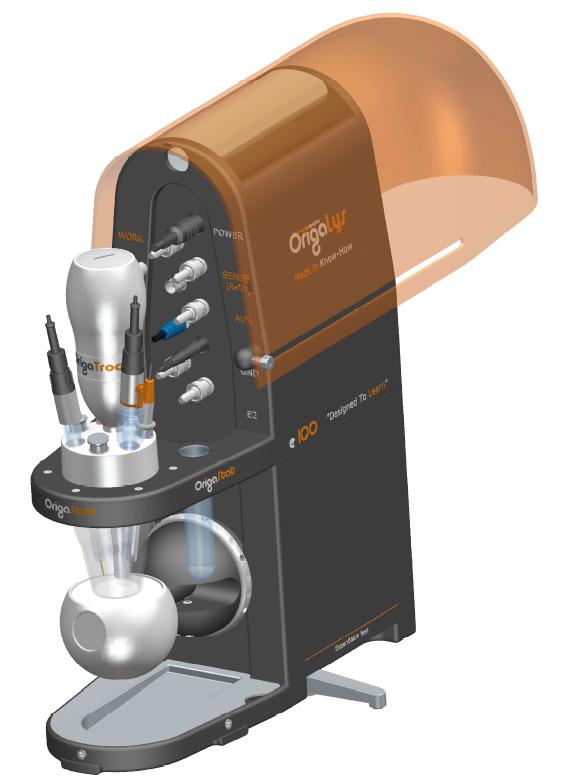

Inputs/Outputs

Power : 6-pin mini DIN, motor servo-controlling (rotating electrodes, stirrers ...)
WORK : BNC, working electrode
REF : BNC, reference electrode
SENSE (Ref2) : BNC,         4-pole measurement cell or second reference electrode
AUX : BNC, auxiliary         electrode
°C : RCA. temperature       measurements adjustable as a function of thermistor's resistance
GND : banana, protected    ground, Faraday cage or     reference electrode for     ionometric measurements    using E1/E2 inputs

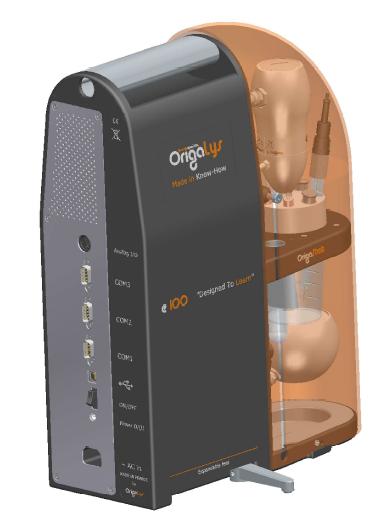

Rear panel

Analog I/O : 8-pin DIN, EIS analog sockets for         connection to an external unit or to a Frequency Response Analyser (please consult us)
COM 1/2/3 : RS232C, 3      serial ports for controlling external devices
USB 2.0 : USB-B, for connection to a PC
